330W GaN USB C Charger, 100W PD3.0 PPS Fast Charging Station with 4-Port (3x USB-C, 1x USB-A). Compact Desktop Power Adapter for
330W GaN USB C Charger, 100W PD3.0 PPS Fast Charging Station with 4-Port (3x USB-C, 1x USB-A). Compact Desktop Power Adapter for
Vendor
LuxsuppFree Shipping & Returns: On orders above £99.00
Description
Description
SPECIFICATIONS
Applied Fast Charge Protocols: Huawei FCP,Samsung Adaptive Fast Charge,Huawei FCP,USB PD,Qualcomm Quick Charge,Huawei Quick Charge
Brand Name: NONE
Certification: UL,UL,RoHS,MSDS,FCC,EMC,CE,CCC
Choice: yes
Display screen: Yes,Yes
GaN: Yes,Yes
High-concerned chemical: None,None
Intelligent Charge: No,No
Isitwithchargingcable: No
Max. Output Power: 330w,330W
Model Number: AS330W,AS330W
Origin: Mainland China,Mainland China
Output Interface: 5 A Ports +,5 A Ports +,3 C Ports+
Power Source: A.C. Source,A.C. Source,A.C. Source
Quality Certification: ce,CCC,ce,ROHS,UL,EMC
Type: Universal Charger,Universal Charger
Product Parameters

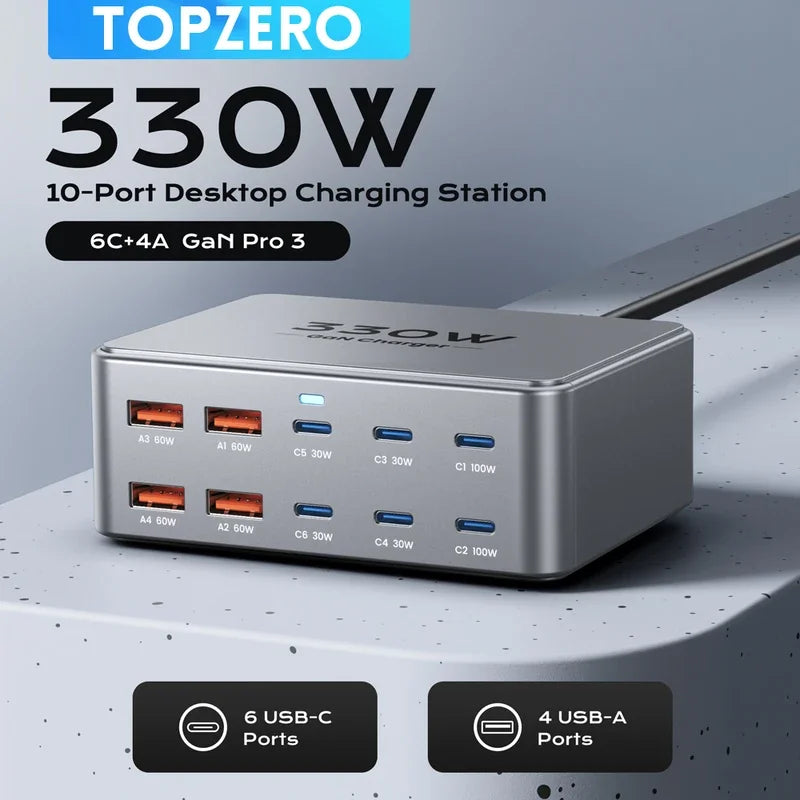

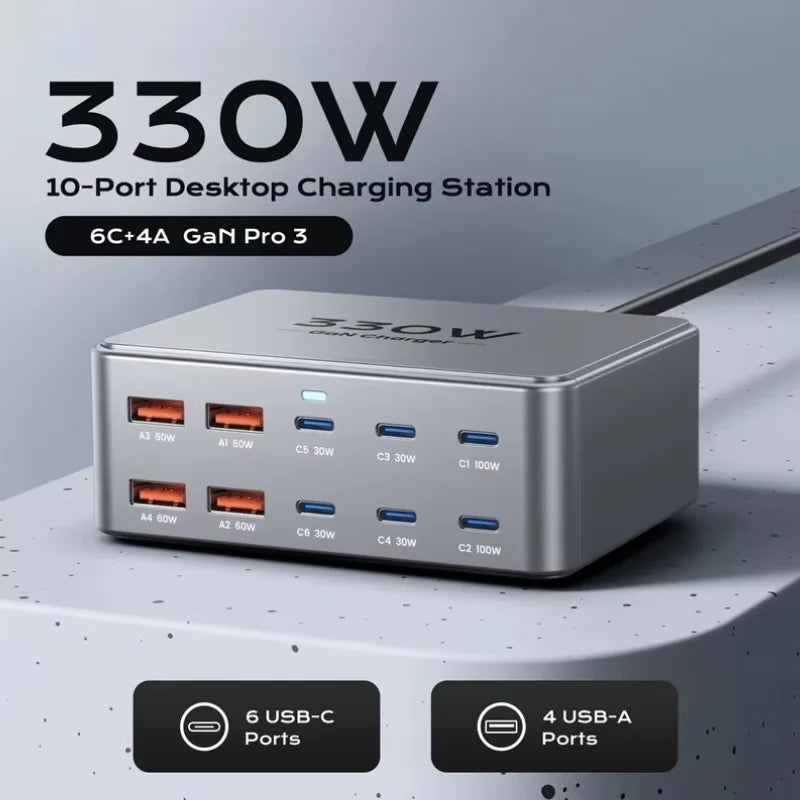

330W 10 USB Desktop GaN Charger
Model No : AS330W
Total Power : 330W Max
USB Ports : 10-Ports (6 USB C+4 USB A)
Input : AC 110V~240V 50-60Hz 2.5A
USB Output :
USB-C1: 3.3V~21V-5A / 5V3A / 9V3A / 12V3A / 15V3A / 20V5A (100w Max)
USB-C2: 3.3V~21V-5A / 5V3A / 9V3A / 12V3A / 15V3A / 20V5A (100W Max)
USB-C3: 3.3V~11V3A / 5V3A / 9V3A / 12V2.5A / 15V2A / 20V1.5A (30W Max)
USB-C4: 3.3V~11V3A / 5V3A / 9V3A / 12V2.5A / 15V2A / 20V1.5A (30W Max)
USB-C5 : 3.3V~11V3A / 5V3A / 9V3A / 12V2.5A / 15V2A / 20V1.5A(30w Max)
USB-C6 : 3.3V~11V3A / 5V3A / 9V3A / 12V2.5A / 15V2A / 20V1.5A(30w Max)
Note:
1. This product only supports fast charging protocols such as PD3.0, PPS, QC3.0, AFC, FCP, and SCP. If your device uses other fast charging protocols, it will not be able to achieve fast charging. Additionally, the fast charging cable can also affect the charging speed. Before testing, make sure to confirm which fast charging protocol your charging cable supports and what the maximum amperage of the cable core is.
2. It's normal for multiple devices to enter the charging state again when connected to other devices during charging, as some circuits are shared. For example, when a device is in the fast charging state of 9V, 12V, and 20V, and an additional device is connected at this time, the circuit will split and reduce the voltage. Some devices will detect the voltage change and reconnect to the configured voltage for charging.
3.Manual measurement, allow an error of 1–2 cm.
